ES6100 Concrete Roller Screed
Eel Screed
The Eel Screed 6100 takes corded roller screeds to a whole new level! With its state of the art patent-pending technology, the Eel Screed takes on any flatwork or pervious job with ease. The three-position handle folds and locks when not in use for safe transport, while the variable speed lever can be moved from the right to left side for easier access. Tired of your screed falling in the mud? The Eel Screed’s kickstand keeps the drive end upright and ready to go, yet removes quickly for storage in the back of the handle when the machine is not in use.
Compatible Products
Lynx Screed System
With various lengths and kits available, this easy-to-assemble system allows you to break away from dedicated pipe lengths.

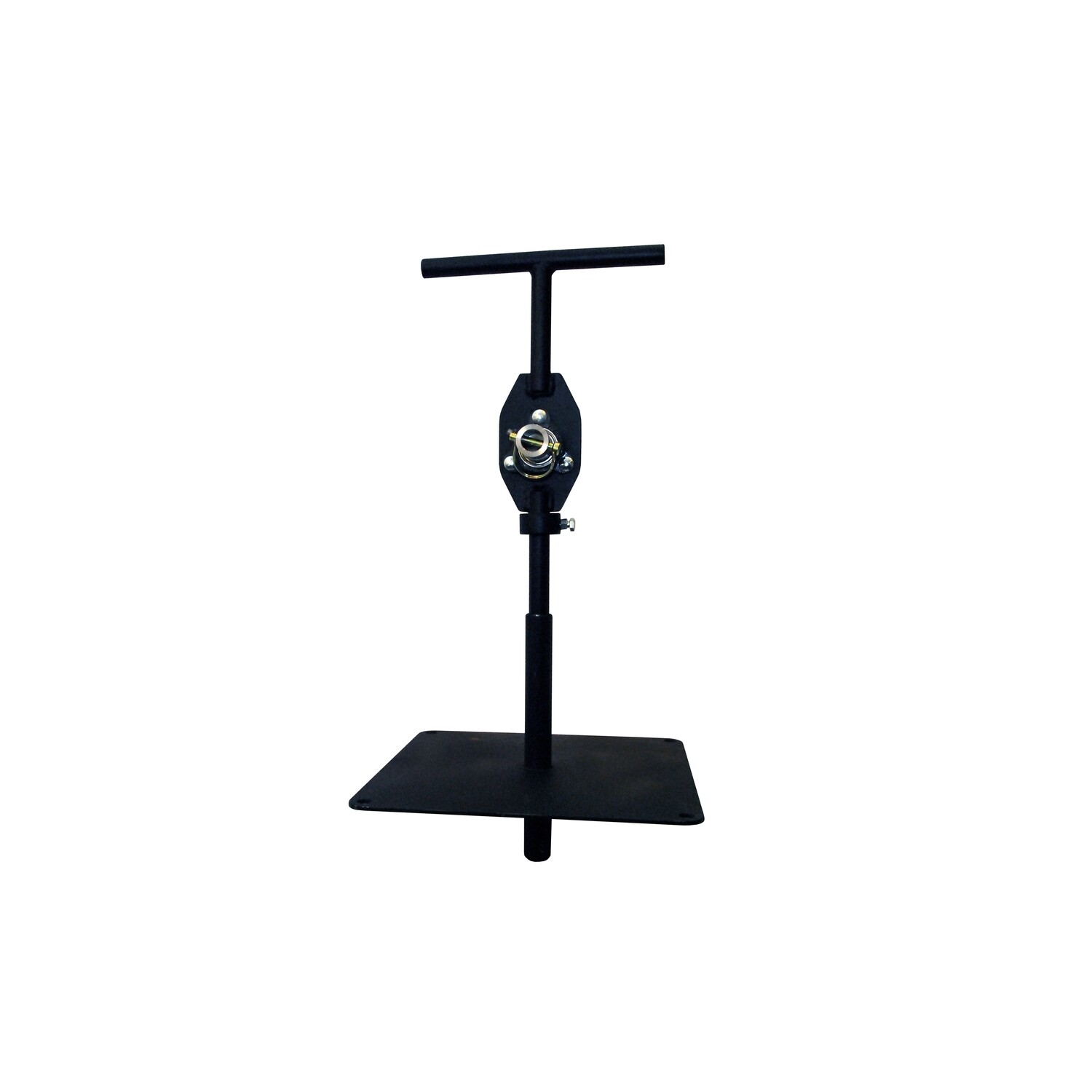

Center Pivot Kit
Perfect for circular pours, such as grain bins or tank bases. This kit includes a pivot handle and one base.
Specifications
Electric Power
Removable Screed Ends
One-Push Directional Change
Screeds Up To 22′ In Length
Right or Left Hand Speed Control
Steel Protective Housing
Features
• Folding and locking handle for safe & compact transport.
• Powered by a 120V, 60hz outlet or generator.
• Removable pipe inserts to easily switch between multiple length pipes.
• All-steel housing protects drill inside from moisture, concrete, and accidental impact.
• Pivoting handle with three position lock for comfortable operation.
• Heavy duty kickstand allows the screed to be free-standing during a pour without catching rebar, formwork, or falling down.
• Lifting handle designed for convenience and safety.
• Internal cord storage.
• 6061-T6 EXTRUDED PORTHOLE PIPE – ASTM B429 – 4” SCH 40 (4.500 OD X .237 W) aluminum pipe recommended for flatwork.
Troubleshooting & FAQ
How do I install the expandable pipe inserts?
To install the expandable pipe inserts into the pipe you will need a ¾” ratcheting socket, wrench, or preferrably a battery impact. Push expandable insert into the end of the pipe until flange is tight against pipe end. Equally tighten the lug bolts on the expandable pipe inserts to ensure proper fitting into pipe.
How do I attach the drive and static ends of the Eel Screed to the pipe?
Once both expandable screed ends are properly and securely installed in the pipe, the next step is to attach the drive end to the pipe. Make sure the screed is unplugged to protect the operator in case of accidental trigger activation. Lay the drive unit down next to the pipe and align the chuck to the expandable insert shaft.
Push drive head all the way onto the shaft. Take one hand and roll the pipe forward until you can see down through the chuck and shaft hole. Once you have the two holes aligned install the lock pin. The drive end is now installed. Repeat this process with the T-bar assembly on the idle end.
Why is my trigger lever sticking?
Why is my machine shaking so much?
Make sure the pipe ends have been cut true and are not angled. Ends not properly cut will cause excessive shaking and may cause damage to the drive unit. Use a factory cut end of the pipe whenever possible to install the drive end on.
Other things to do include checking to see if the pipe itself is bent, and avoid abrupt or excessive movement of the drive unit to reposition pipe location.
Why is nothing happening when I pull the speed lever?
What pipe should be used with the Eel Screed?
4″ SCH40 aluminum pipe or our patent-pending Lynx Screed System. If buying from an outside source, we recommend using this aluminum pipe: 6061-T6 EXTRUDED PORTHOLE PIPE – ASTM B429 – 4” SCH 40 (4.500 OD X .237 W)
What is the power source for the Eel Screed?
The Eel Screed is powered by plugging the cord into a 120V, 60hz outlet or generator.
Can the Eel Screed be pulled in only one direction?
The Eel Screed is designed to easily adapt to an either direction pull. Just push the directional button all the way on the desired side so the pipe spins away from the operator.
Which way should the pipe spin?
With both operators holding firmly on the handles lightly pull the variable speed trigger to see which direction the pipe turns. The pipe should roll away from the operators for proper operation. If the pipe rolls towards the operators, simply change the rotation of the pipe by pushing the directional button on the side of the machine.
Does the Eel Screed only run at one speed?
Nope! Thanks to the adjustable right or left hand speed control, how much grip you put on the lever will change how fast or slow the pipe spins.
How heavy is the Eel Screed?
The Eel Screed weighs about 70 lbs without an aluminum pipe attached.
Does Curb Roller Mfg have a warranty on the Eel Screed?
We do! Currently we offer a 1 year warranty on the Eel Screed ES6000 to the original purchaser.
We are located outside of the United States and Canada. Can we still buy the Eel Screed?
Of course! We have many happy customers outside of the United States and Canada. We just ask that you contact our international dealer J.D. Honigberg to set up your order. More information can be found here.
Features & specifications are subject to change without notice.
